Ever wonder what actually makes carbon fiber insoles so effective in high-performance footwear? They are far more than just thin black inserts slipped into a shoe. When properly engineered, a rigid carbon-fiber composite shell works in harmony with soft cushioning foam, a durable top cover, and shoe-specific geometry to build a powerful underfoot platform. For footwear brands and designers, the real advantage lies in customization—allowing you to fine-tune stiffness, weight, and arch support to match specific movement patterns.

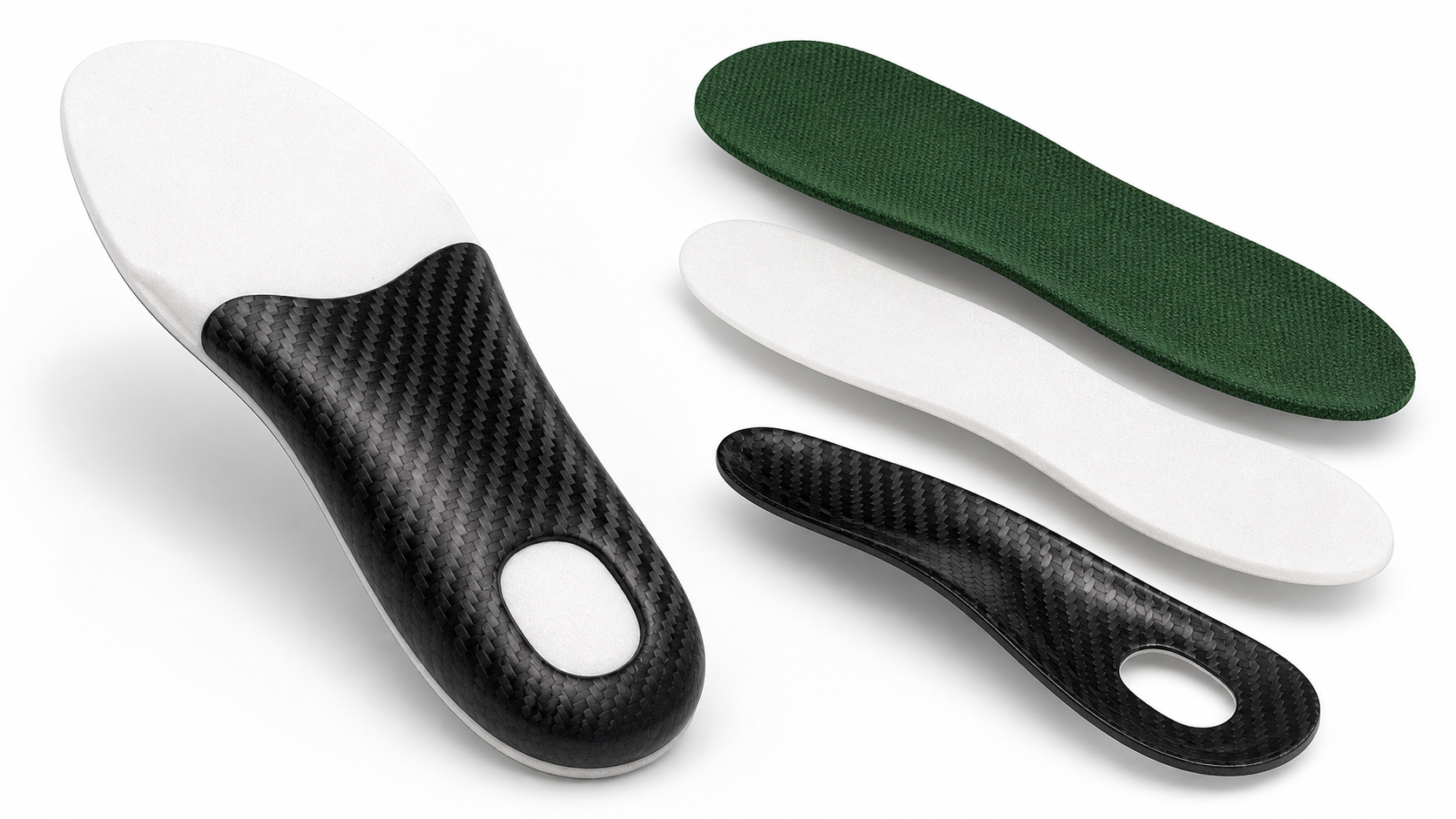

Achieving this performance requires a balanced multi-layer design. In a typical quality build, a soft textile top layer and flexible forefoot foam manage direct contact comfort, while the molded carbon-fiber shell stabilizes the heel and arch. This layered approach ensures that the carbon fiber delivers structure and energy return without sacrificing the smooth, comfortable fit runners expect.
This guide explains five major benefits that matter to footwear product developers, sourcing teams, and brand managers in 2026. It also clarifies where carbon fiber is appropriate—and where a more flexible material may be the better choice.
What Are Carbon Fiber Foot Insoles?
Carbon fiber foot insoles use a composite reinforcement made from carbon fibers held in a resin matrix. Depending on the product brief, the reinforcement may cover the arch and heel, extend farther into the forefoot, or be limited to a specific support zone. The shell is normally combined with one or more comfort materials rather than used as the only foot-contact layer.
That distinction matters. Carbon fiber is valued primarily for structural performance, not plush cushioning. Foam thickness, top-cover texture, heel-cup geometry, edge finishing, and the transition between rigid and flexible zones all influence the final experience. A carbon shell that looks impressive but does not match the shoe last or target user can create pressure points, excess stiffness, or poor fit.
For a commercial example of this construction category, see FX Footwear’s carbon fiber support insole. Brands comparing a wider set of technologies can also review the functional insole range.
1. High Structural Support With a Thin Profile
The first major benefit is a high stiffness-to-thickness ratio. A carbon-fiber composite can provide meaningful arch and rearfoot structure in a thinner section than many bulky molded plastics or thick foam-only support systems.
For footwear developers, a thin structural layer helps preserve internal shoe volume. That can be useful in close-fitting athletic, cycling, court, and performance lifestyle footwear, where adding a thick insole may raise the foot, reduce toe-box space, or interfere with heel lockdown. The shell can reinforce selected areas without turning the entire insole into a thick platform.
Thin does not automatically mean comfortable or supportive. The laminate schedule, fiber orientation, shell edge, arch contour, and foam package must be developed together. The correct target is enough structure for the use case while maintaining compatible fit inside the intended shoe.
Benefit 2: Low Weight for Performance-Focused Footwear
Carbon fiber is known for combining stiffness with relatively low mass. In an insole, this allows a development team to add structural function while controlling component weight—especially when the shell is placed only where reinforcement is needed.
That is relevant for running, court, training, cycling, and other categories in which every component contributes to the total shoe-weight target. However, a carbon shell does not guarantee that the finished insole will be lighter. Dense foams, thick top covers, large heel pads, adhesives, and oversized shell geometry can cancel out the material advantage.
Brands should therefore compare complete, finished samples in the correct size instead of comparing raw material sheets. The broader principles behind mass, cushioning, and structural trade-offs are covered in FX Footwear’s guide to performance insole materials and engineering.
3. Tunable Stiffness and Support Zones
Customization makes carbon fiber more useful than a generic rigid insert. Developers can adjust shell coverage, thickness, contour, cutouts, and fiber orientation to change how the insole resists bending or twisting in different zones.
For example, one brief may call for a stable arch and heel with a flexible forefoot. Another may require a longer support path under the midfoot. A shell can also be paired with softer foam above the heel or forefoot so the product does not rely on rigidity alone.
This tunability should be validated at finished-insole and complete-shoe level. More stiffness is not always better. Excessive rigidity can reduce comfort, restrict the intended flex pattern, or make the transition at the shell edge noticeable. A useful specification defines the target behavior and test method rather than asking only for “more carbon.”
4. Stable Geometry Under Repeated Loading
A correctly designed composite shell can help the insole retain its intended arch and heel geometry under repeated use. This structural stability differs from cushioning durability: the carbon component supports shape, while the foam system still determines much of the compression feel and long-term cushioning response.
This separation of functions can be valuable in products where a foam-only arch may gradually deform or where consistent positioning is important. It allows the developer to select the shell for structure and the foam for cushioning, rather than forcing one material to perform both jobs.
Durability still depends on the whole construction. Lamination quality, resin selection, edge treatment, flex concentration, moisture exposure, and bonding between layers can all affect performance. Carbon fiber is strong in its intended load direction, but it is not immune to cracking, delamination, or damage from poor geometry. Sample testing should include repeated flexing, dimensional checks, bond evaluation, and wear trials appropriate to the shoe category.

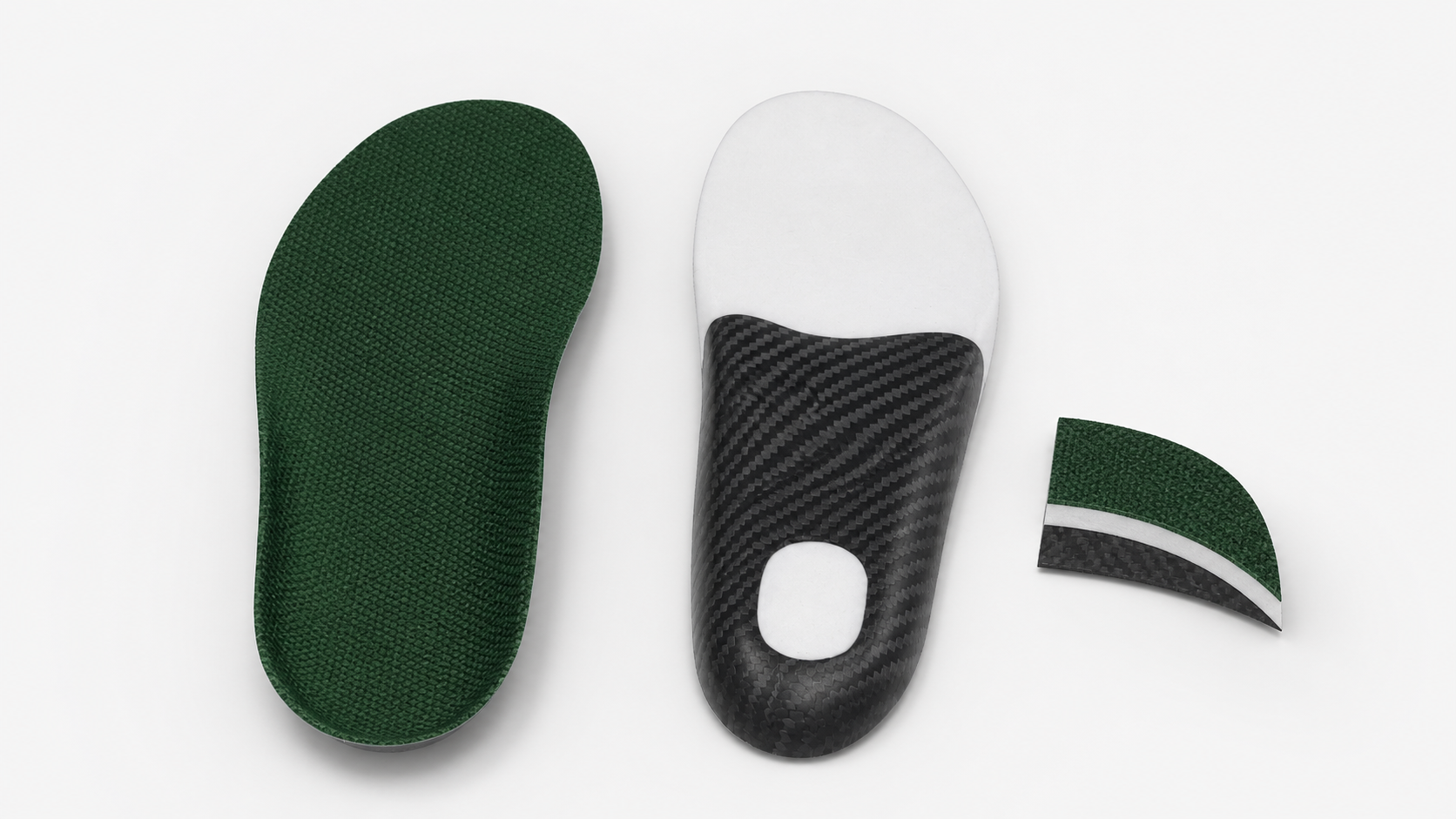

5. Product Differentiation Through Custom Layering
Carbon fiber creates design options beyond a single-material insole. A brand can combine a composite shell with EVA, PU, supercritical foam, gel elements, moisture-management fabric, or other layers to build a product around a specific performance and price brief.
That supports meaningful product differentiation. Instead of offering the same stock insert across several shoes, a development team can tune shell coverage, cushioning thickness, surface material, color, and visual presentation for a particular model or range. The carbon weave can be visible where appropriate, but its technical role should remain more important than its appearance.
Custom layering also gives sourcing teams clearer control over trade-offs. A firmer shell may be paired with a softer contact layer; a minimal shell may be used to control weight; or a deeper heel cup may be integrated for a different fit objective. The custom insole development process shows why these decisions should be resolved through a defined brief, sampling, tooling, and approval sequence.
How Should Brands Specify Custom Carbon Fiber Insoles?
Start with the footwear application, not the material name. A useful product brief should define:
- The shoe category, last, size range, and available internal volume.
- The target user and movement pattern, without making unsupported medical claims.
- The desired shell coverage and where the insole should remain flexible.
- Finished-insole weight, thickness, and fit tolerances by size.
- Foam, top-cover, moisture-management, and bonding requirements.
- Validation methods for stiffness, flex durability, dimensional stability, and lamination.
A golden sample should be approved in the intended shoe, not evaluated on a table alone. Product teams should check toe-box volume, heel seating, edge feel, flex location, and interaction with the midsole and outsole. For athletic programs, FX Footwear’s running footwear solution provides useful context on how insoles must work with the complete footwear system.
When Are Carbon Fiber Foot Insoles Not the Best Choice?
Carbon fiber may be unnecessary when the product needs a very soft, highly flexible, low-cost insert. It can also be a poor fit if the shoe lacks enough space for the complete layered construction or if the support geometry has not been matched to the last.
Developers should compare carbon fiber with molded TPU, reinforced EVA, nylon composites, and foam-only structures. The right choice depends on the stiffness target, flex pattern, durability requirement, component weight, cost ceiling, and user experience—not on a premium material label.
Frequently Asked Questions About Carbon Fiber Foot Insoles
Are carbon fiber foot insoles the same as carbon-plated running shoes?
No. An insole shell sits inside the shoe and is only one part of the underfoot system. A carbon plate integrated into a running shoe’s midsole is designed and tuned with the foam geometry, rocker, and outsole. The two components should not be assumed to deliver the same mechanical effect.
Are carbon fiber insoles completely rigid?
Not necessarily. Rigidity depends on laminate thickness, fiber orientation, shape, cutouts, and coverage. Many designs use a structured arch and heel while leaving the forefoot comparatively flexible.
Can carbon fiber insoles treat foot conditions?
This article describes footwear-component design, not medical treatment. Products marketed with diagnostic, corrective, or therapeutic claims may require clinical input, supporting evidence, and regulatory review. People with persistent pain or a diagnosed condition should consult a qualified healthcare professional.
What should brands test before production?
Test complete samples for dimensions, weight, stiffness, repeated flex, layer adhesion, edge integrity, and fit in the intended shoe. Wear testing should reflect the actual sport or use environment, and acceptance criteria should be documented before bulk production.
