Lightweight Midsoles That Don’t Sacrifice Durability

The weight-durability tradeoff in midsole design isn’t a binary choice anymore. Lightweight midsoles built with supercritical fluid foaming (SCF) can hit densities as low as 0.07 g/cm³ while delivering 80%+ rebound rates — numbers that would’ve been fantasy a decade ago. The real question for footwear brands isn’t whether light and durable can coexist; it’s which base resin and construction method gets you there at the right price point.

If you’re sourcing midsoles for athletic, casual, or performance footwear, this breakdown covers the three SCF-compatible materials that matter most — EVA, TPU blends, and PEBA — along with the engineering decisions that determine whether your midsole holds up at mile 500 or falls apart at mile 50.

The Weight-Durability Problem

Here’s what happens when you strip weight from a traditional midsole: you reduce material density. Reduce density too far, and cell walls thin out. Thin cell walls collapse under repeated compression. The runner feels great for a week, then the midsole bottoms out.

That’s compression-molded EVA’s Achilles’ heel. A standard CM EVA midsole at 0.15–0.20 g/cm³ works fine for casual footwear with moderate daily use. Push it lighter — say 0.10 g/cm³ — using conventional chemical blowing agents, and the foam structure becomes uneven. Large cells form next to small ones. Stress concentrates at those boundaries. You get visible creasing on the lateral sidewall within 80–100 km of running.

Chemical blowing agents produce gas by thermal decomposition, which is inherently less controllable than physical foaming. The result: inconsistent cell size distribution, more weak points, faster degradation.

This is exactly where supercritical fluid foaming changes the calculus.

SCF uses CO₂ or N₂ under supercritical conditions (above the critical temperature and pressure of the gas) to create a microcellular structure with predominantly closed cells. Because the blowing agent is a physical gas — without traditional chemical blowing agents — cell nucleation is far more uniform. More uniform cells mean more consistent load distribution across the midsole cross-section.

The practical upshot: you can reduce density significantly while maintaining structural integrity over hundreds of thousands of compression cycles.

SCF EVA: The Workhorse Option

EVA (ethylene-vinyl acetate) is the most widely used, most mature, and most cost-effective base material for SCF processing. If you’re sourcing lightweight midsoles at scale for anything from everyday trainers to mid-tier performance running shoes, SCF EVA is probably your starting point.

Why? Low raw material cost. Excellent flowability during foaming (which means fewer rejects). Good compatibility with colorants, additives, and other polymers in blended formulations. EVA also maintains shape well under long-term use — it doesn’t develop the dramatic compression set issues you’d see in, say, a cheap open-cell PU foam after six months of daily wear.

A typical SCF EVA midsole spec might look like this:

Those numbers won’t win a marathon. But they’ll serve 80% of the footwear market’s midsole needs at a price point that makes finance teams happy.

The tradeoff? SCF EVA’s rebound caps out below TPU blends and well below PEBA. And while its compression set is better than chemically-foamed EVA, it still degrades faster than TPU-based foams under sustained high-load use. For a 180-pound runner doing 50+ miles per week, SCF EVA loses noticeable cushioning responsiveness around the 400–500 km mark. A casual wearer doing 10,000 steps a day won’t notice meaningful degradation for 6–8 months.

If your brand targets the $80–$130 retail price segment — think everyday running shoes, gym trainers, walking shoes — SCF EVA gives you the best weight-to-cost ratio available. We process SCF EVA across our facilities in China and Southeast Asia, and it’s the material where our custom midsole supplier capabilities really shine at volume.

TPU Blends: Durability Without the Weight Penalty

Pure TPU (thermoplastic polyurethane) is a tank of a material. Superior elasticity, mechanical strength, abrasion resistance, oil resistance. After SCF processing, TPU pellets expand into soft, lightweight foam that retains far more structural memory than EVA over time.

There’s a catch. TPU’s density, even after foaming, runs higher than EVA. A pure SCF TPU midsole can feel heavy in hand — and on foot. That’s why almost nobody uses 100% TPU in a full-length midsole anymore.

The industry solution: TPU-EVA blends.

By blending TPU into an EVA matrix before supercritical foaming, you get a composite foam that borrows TPU’s durability and resilience while keeping EVA’s low density and processability. The ratio matters. A 70/30 EVA-to-TPU blend behaves differently from 50/50, and the optimal ratio depends on the application:

• 80/20 EVA/TPU: Barely heavier than pure SCF EVA. Modest durability boost. Good for lifestyle shoes where longevity matters more than performance.
• 60/40 EVA/TPU: Noticeable improvement in compression set resistance and energy return. Adds roughly 8–12% weight versus pure SCF EVA. Sweet spot for mid-to-upper-tier running shoes.
• 50/50 EVA/TPU: Approaches pure TPU durability. Weight penalty becomes meaningful. Best reserved for high-mileage training shoes or workwear where the shoe needs to last 800+ km or 12+ months of daily use.

The rebound hierarchy here is clear: TPU-rich blends outperform pure EVA in energy return and long-term resilience. But they cost more per kilogram, and processing parameters need tighter control — TPU’s melt behavior is less forgiving than EVA’s, which means your manufacturer needs real SCF experience to avoid batch inconsistency.

(Side note: this is one reason working with a manufacturer that controls the foaming process end-to-end matters. If your midsole supplier farms out the SCF foaming step to a third party, you lose visibility into the process window — temperature, pressure, saturation time — that determines whether batch 500 matches batch 1.)

We covered the science behind the highest-performance SCF resin — PEBA midsole foam — in detail previously, but it’s worth putting PEBA in context against these blends for brands deciding where to invest.

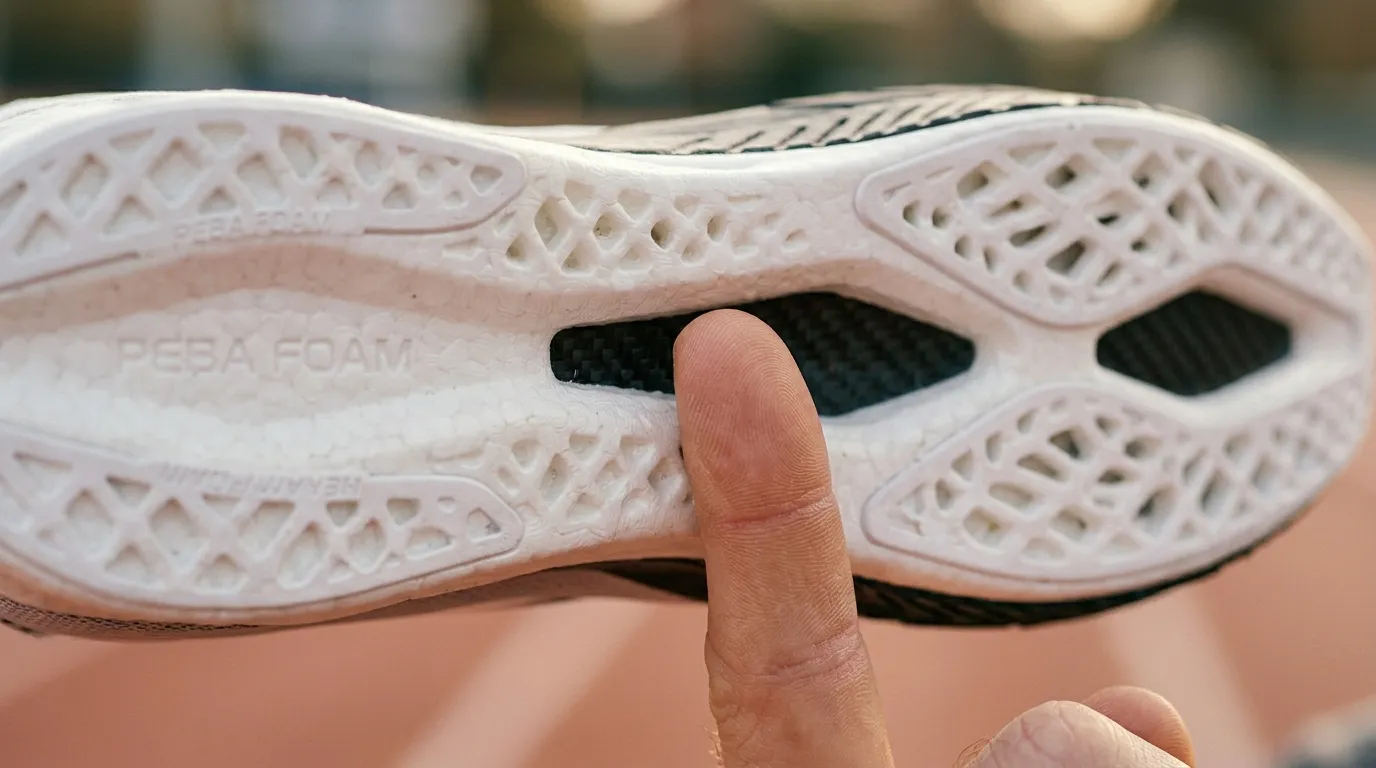

PEBA: When Weight Is Everything

PEBA (polyether block amide) sits at the top of the SCF resin hierarchy. Exceptional resilience combined with extremely low weight. The Adidas ADIZERO ADIOS PRO EVO series — with PEBA foam supplied by Shincell (申赛新材料), a Suzhou-based specialist founded in 2019 — demonstrated what’s possible: race-day midsoles that feel almost impossibly light yet return energy at rates exceeding 80%.

But PEBA is the most expensive SCF base material by a wide margin. Raw PEBA resin costs 3–5× more than EVA. It’s typically blended with EVA or TPU before foaming to optimize the cost-to-performance ratio, and even blended PEBA formulations carry a significant premium.

Who should spec PEBA midsoles? Brands building $180+ race-day or elite training shoes where every gram directly affects competitive performance. If you’re building a $100 daily trainer, PEBA is overkill — your customer won’t perceive the difference, and you’ll erode margins for no competitive benefit.

The durability picture for PEBA is interesting. Pure PEBA foam holds up remarkably well against compression set — better than EVA, comparable to TPU in many formulations. But because PEBA midsoles are often foamed to extremely low densities (0.07–0.10 g/cm³) for race-day weight targets, the absolute amount of material present is minimal. Less material means less total capacity to absorb cumulative damage.

Translation: a PEBA race shoe might feel incredible for 200 km, then degrade noticeably. That’s acceptable for competitive footwear (most elite racing flats are designed for 150–300 km of race use). It’s not acceptable for an everyday shoe.

*PEBA durability is high per unit material but total lifespan is limited by ultra-low density targets.

Construction Decisions That Matter

Material selection is half the equation. How you build the midsole — and what you pair it with — determines whether lightweight translates into a durable finished product.

Dual-density construction. A common approach: softer, lighter foam in the forefoot (where ground contact is brief and impact forces peak) paired with denser, more durable foam in the heel (where compression cycles accumulate over longer contact time during heel strike). This lets you optimize weight where it matters most while reinforcing durability where degradation hits first.

Sidewall geometry. Thinner sidewalls save weight but expose the foam edge to abrasion and UV degradation. Brands running lightweight SCF midsoles often add a thin TPU film wrap or integrated rubber mudguard at the lateral heel — adding maybe 3–5 grams but extending visible life by months. The psychology matters: consumers evaluate midsole “durability” partly by appearance. A structurally sound midsole that looks chewed up gets returns.

Outsole integration. The interface between midsole and outsole is a failure point. If your adhesion protocol isn’t matched to the SCF foam’s surface energy (which differs from conventional EVA), delamination happens. This is where end-to-end production control — from material foaming to final assembly — prevents the kind of field failures that generate warranty claims. We test adhesion in our in-house lab before signing off on any new midsole-outsole pairing.

Insole-midsole interaction. A lightweight midsole paired with the right insole amplifies the performance story. Our supercritical CO₂ foam insole uses the same SCF technology at the insole layer, creating a consistent foam-on-foam energy return profile from footbed to ground. Mixing a supercritical midsole with a cheap die-cut EVA insole undermines the entire platform — the insole becomes the bottleneck.

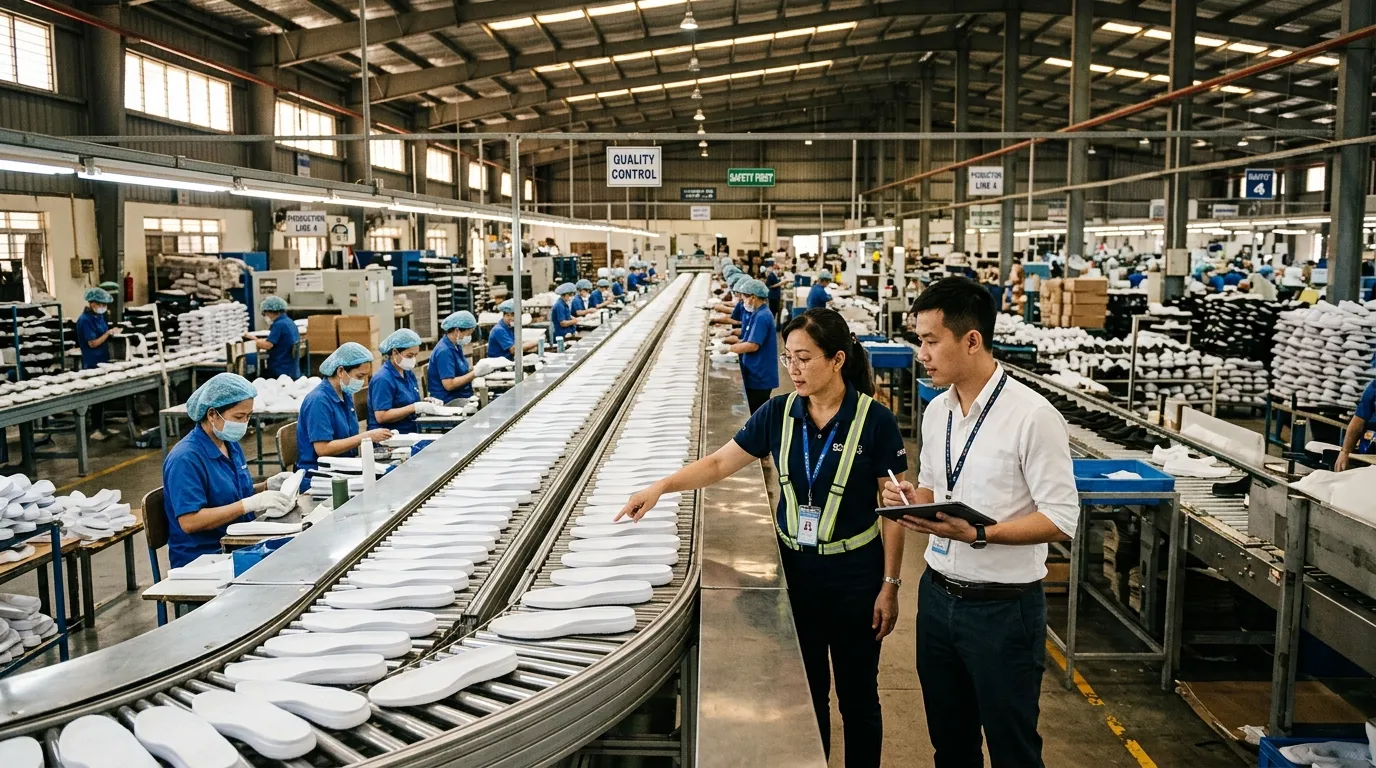

Sourcing Lightweight Midsoles at Scale

Finding a manufacturer that can deliver lightweight SCF midsoles consistently across 50,000+ pair orders isn’t trivial. The SCF process requires precise equipment (autoclaves or continuous foaming lines rated for supercritical pressures), trained operators, and rigorous in-process QC — because you can’t inspect internal cell structure visually after foaming.

Key questions to ask any potential midsole supplier:

• Do they control the foaming step in-house, or outsource it? Outsourced foaming means slower iteration, less batch consistency, and longer lead times.
• Can they provide mechanical test data (rebound, compression set, density) per batch? If the answer is “we can get third-party testing arranged,” that’s a flag — it means they’re not testing routinely.
• What’s their regional footprint? Manufacturing proximity to Tier 1 assembly factories (in Vietnam, Indonesia, or southern China) cuts logistics time and shipping cost. Our facilities in China, Northern Vietnam, Southern Vietnam, and Indonesia sit alongside major footwear assembly hubs, which means midsole components reach the assembly line in days, not weeks.
• Can they handle multi-component orders? If you’re also sourcing insoles, uppers, or outsole components, consolidating with a one-stop footwear component manufacturer reduces coordination overhead and quality-control gaps between suppliers.

SCF EVA midsoles typically run 30–45 days for bulk production after sample approval. Factor in 7–14 days for sampling and 18–30 days ocean freight to US ports, and you’re looking at a 65–90 day total cycle for a first-time custom order. Not fast, but predictable — which matters more for production planning.

For brands evaluating eco-credentials: SCF foaming uses CO₂ or N₂ only as blowing agents, producing no VOCs during the process. Pair that with sugarcane-based or recycled EVA base resins (both available under GRS-certified supply chains), and you have a lightweight insole manufacturer and midsole story that holds up to sustainability audits without greenwashing risk.

FAQ

What makes SCF midsoles more durable than standard EVA?

SCF produces a microcellular structure with predominantly closed cells and uniform cell distribution. This spreads compression forces evenly, reducing weak points that cause premature foam collapse in chemically foamed EVA.

Which SCF material is lightest?

EVA achieves the lowest raw density, but PEBA delivers the best rebound-to-weight ratio. At equivalent performance levels, PEBA blends can be lighter because less material is needed to hit the same energy return target.

Are TPU blend midsoles heavier than pure EVA?

Yes. A 60/40 EVA/TPU blend adds roughly 8–12% weight versus pure SCF EVA. The tradeoff is significantly better compression set resistance and longer midsole lifespan.

How long do PEBA midsoles last?

PEBA foam resists compression set well, but race-day PEBA midsoles foamed to ultra-low densities (0.07–0.10 g/cm³) are typically designed for 150–300 km of competitive use, not everyday durability.

Can lightweight midsoles use recycled materials?

Yes. SCF-compatible EVA can be formulated with recycled EVA compounds or sugarcane-based EVA, both sourceable under GRS-certified supply chains with full traceability documentation.

Ready to develop lightweight midsoles that hold up at scale? FX Footwear (Fuxiang Group) manufactures SCF EVA, TPU-blend, and PEBA-blend midsoles across four regional facilities in China, Vietnam, and Indonesia. From material foaming through final QC, we control the entire production chain — and we’ll send you initial quotes within 48 hours for standard constructions. Reach out to start your midsole project.
