When you’re specifying heel counters for a production run, the choice between molded vs. thermoformed heel counters comes down to five factors: stiffness profile, unit weight, per-piece cost, geometric complexity, and how each process fits your production timeline. Injection-molded counters start as pellets forced into a steel mold under pressure; thermoformed counters start as flat sheets heated and vacuum-drawn over a form. Same function, different economics, different performance envelope.
If you’re sourcing at scale for the US market and trying to decide which process to spec, this breakdown covers the manufacturing mechanics, real material tradeoffs, and where each method wins or loses money.

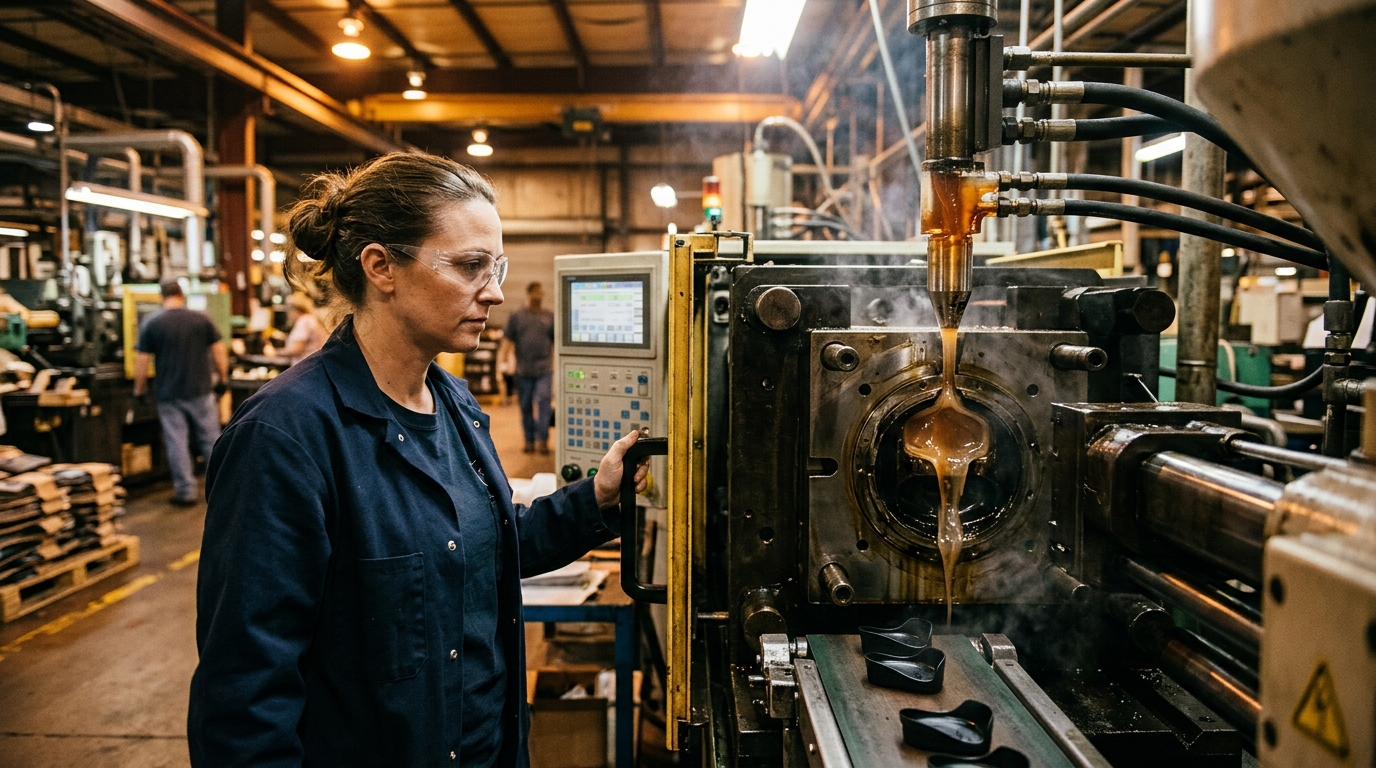

How Injection Molding Works
Injection-molded heel counters are produced by feeding thermoplastic pellets (typically polypropylene, nylon, or TPU) into a heated barrel, where a reciprocating screw melts and homogenizes the material before injecting it at high pressure — often 800–1,200 bar — into a precision-machined steel mold cavity.
The mold clamps shut. Material fills every channel, rib, and contour in the cavity within 2–8 seconds. Cooling circuits running through the mold steel drop the part temperature fast enough for ejection in 15–40 seconds total cycle time, depending on wall thickness. You open the press, the part pops out, a robot or operator trims any gate vestige, and the next cycle starts.
What makes this process interesting for heel counters specifically: you can design variable wall thickness into the same part. A 2.5 mm spine running up the Achilles zone for maximum rigidity, thinning to 1.2 mm at the medial and lateral wings for flex — all in one shot. No secondary operations. No bonding. Try that with sheet thermoforming and you’ll need selective material placement or post-forming machining, both of which add cost.
The catch? Tooling. A single-cavity heel counter mold in P20 or H13 steel runs $8,000–$25,000 depending on complexity, surface finish, and whether you need slides or lifters for undercuts. Multi-cavity tools for high-volume production (4-cavity, 8-cavity) push well past $40,000. That investment only makes sense above roughly 50,000–100,000 pairs per year per SKU, though the breakeven shifts based on your material choice and market pricing.
Cycle time comparison at a glance:
| Parameter | Injection Molding | Sheet Thermoforming |
|---|---|---|
| Typical cycle time | 15–40 sec | 30–90 sec |
| Tooling cost (single cavity) | $8,000–$25,000 | $1,500–$6,000 |
| Tooling material | Hardened steel (P20/H13) | Aluminum or epoxy |
| Min. economical run | 50,000+ pairs/yr | 5,000+ pairs/yr |
| Wall thickness control | Variable within part | Uniform sheet gauge |

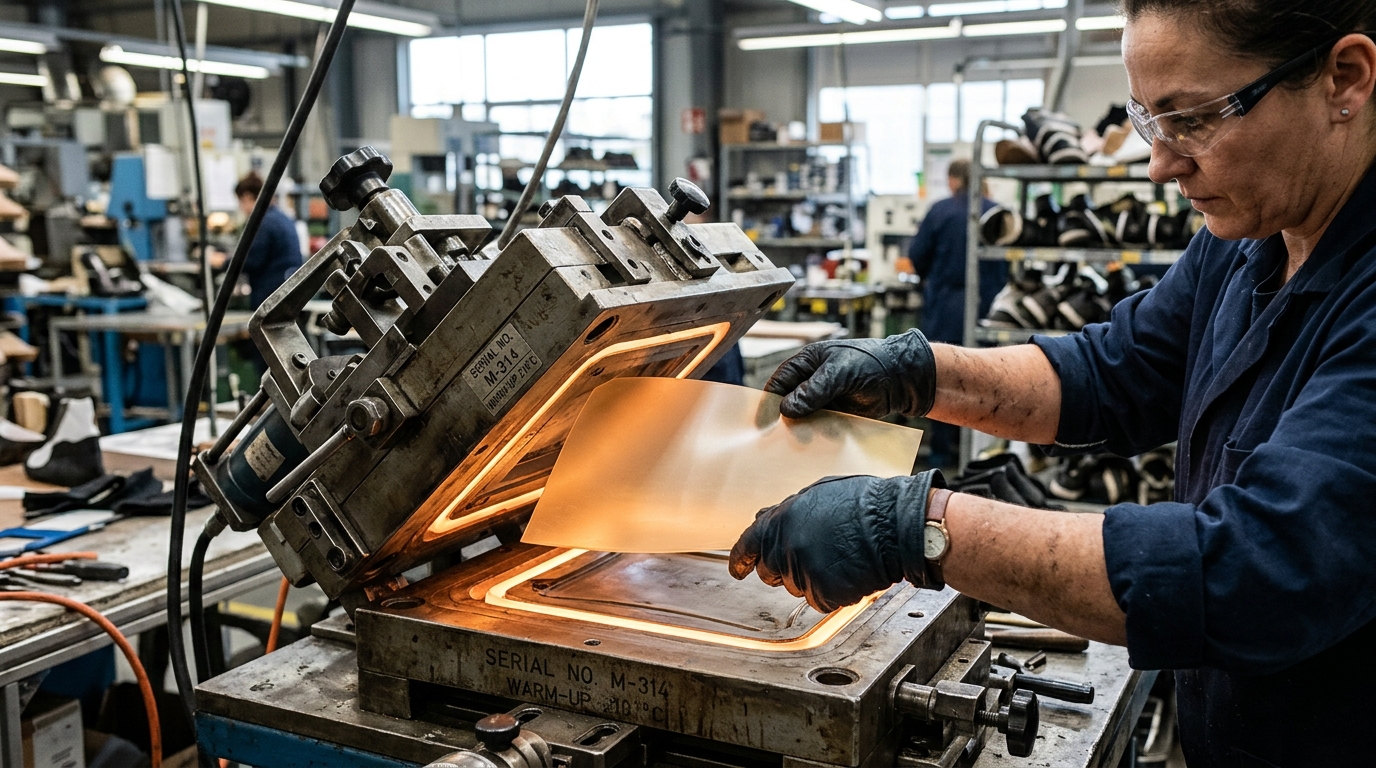

How Thermoforming Works
Sheet thermoforming for heel counters starts with a flat thermoplastic sheet — usually 1.0–2.5 mm thick — clamped in a frame and heated to its softening point (around 130–180°C for common counter materials like modified polypropylene or cellulose-fiber composites). Once pliable, the sheet drapes over or into an aluminum or cast-epoxy form tool. Vacuum pulls the softened sheet tight against the mold surface. Some systems add positive air pressure from above for sharper detail.
After cooling (fans, sometimes chilled tooling surfaces), the formed shell gets die-cut or CNC-trimmed to the final heel counter profile.
The beauty of this process is speed-to-production. Aluminum thermoform tools can be CNC-machined in 5–7 days. Epoxy cast tools, even faster. If your brand launches a new silhouette and needs counter samples in two weeks, thermoforming gets you there. Injection molding doesn’t — not with a 6–10 week steel mold lead time.
There’s a real tradeoff in part geometry, though. Because you’re stretching a uniform sheet over a form, material thins at draw corners and deep contours. A 2.0 mm sheet pulled into a deep heel cup might thin to 1.3–1.4 mm at the deepest point. That thinning isn’t controllable the way injection molding’s cavity dimensions are. For moderately curved heel geometries (think casual footwear, most athletic shoes), this works fine. For deeply sculpted, aggressive heel geometries with sharp transitions — like a performance hiking boot with integrated lateral stabilizer wings — thermoforming struggles to deliver consistent wall thickness without secondary reinforcement.
One area where thermoforming genuinely outperforms: weight. Thermoformed counters from the same base polymer weigh 15–30% less than their injection-molded equivalents, because the sheet stretching inherently produces thinner walls. For trail running and athletic applications where every gram matters, this is a real advantage.
Stiffness & Performance Tradeoffs
Here’s where specifying gets interesting — and where a lot of sourcing teams make expensive mistakes.
Injection-molded counters can achieve a wider stiffness range within a single part because you control material selection and wall geometry independently. A nylon 6 counter with 30% glass-fiber fill, injection-molded with a 2.8 mm spine and 1.5 mm wings, will deliver Shore D 72–78 hardness at the spine and meaningful flex at the periphery. That’s hard to replicate in thermoforming without laminating multiple sheet layers.
Thermoformed counters rely almost entirely on material selection and sheet gauge for stiffness tuning. You pick your sheet (polypropylene, cellulose-impregnated nonwoven, Surlyn, etc.) and your thickness. That’s your stiffness. Some suppliers offer dual-layer thermoforming — a stiff core bonded to a softer skin — but that adds a lamination step and roughly 20–35% to part cost.
For therapeutic and orthopedic footwear (a segment FX Footwear supports under our ISO 13485:2016 certification), stiffness consistency matters batch to batch. Injection molding’s repeatability — typically ±2% on flexural modulus — edges out thermoforming’s ±5–8% variation, which comes from sheet gauge tolerance and draw-ratio differences across the tool.
Stiffness comparison by material and process:
| Material | Process | Typical Flexural Modulus | Best Application |
|---|---|---|---|
| PP (polypropylene) | Thermoformed | 1,100–1,500 MPa | Casual, athletic |
| PP + 20% talc fill | Injection molded | 1,800–2,200 MPa | Stability shoes, work boots |
| Nylon 6 + glass fiber | Injection molded | 3,500–6,000 MPa | Hiking, mountaineering |
| Cellulose-impregnated sheet | Thermoformed | 800–1,200 MPa | Dress shoes, lightweight casual |
| Surlyn (ionomer) | Thermoformed | 300–500 MPa | Comfort-flex casual |
That cellulose-impregnated sheet (sometimes called “thermoplastic counter board”) deserves a note. It’s the most common thermoformed heel counter material globally — probably 60%+ of all thermoformed counters use some version of it. It softens during shoe lasting, molds to the last shape, then stiffens as it cools. Simple, cheap, and good enough for enormous volumes of casual footwear. But it’s not water-resistant, degrades with repeated moisture exposure, and can’t match injection-molded PP or nylon for long-term shape retention.
Cost Analysis at Different Volumes
Forget generalizations about which process “is cheaper.” It depends entirely on annual volume per SKU.
At 5,000 pairs: thermoforming wins, and it’s not close. Your tooling is $2,000–$4,000 vs. $12,000+ for injection. Even if your per-piece thermoformed counter costs $0.35 vs. $0.22 for injection-molded, the tooling amortization at low volume destroys injection molding’s unit-cost advantage.
At 50,000 pairs: it gets competitive. Tooling amortization on injection drops to $0.24–$0.50 per pair. Per-piece cost advantage of injection molding starts showing up in your landed cost.
At 200,000+ pairs: injection molding is almost always cheaper per unit. Multi-cavity tools running 4 or 8 parts per cycle at 25-second cycles produce counters at $0.08–$0.15 each (material + conversion, excluding tooling amortization). Thermoforming can’t touch that at scale because cycle times are longer and sheet material pricing per kilogram trends higher than pellet pricing for equivalent polymers.
Where sourcing teams from our partner brands often find value is running both processes in parallel. One client — a US outdoor brand producing across casual and performance lines — specs thermoformed cellulose counters for their casual styles (lower volume, 8,000–15,000 pairs per colorway) and injection-molded nylon counters for their hiking boots (higher volume, 60,000+ pairs per season). Same factory, same QC pipeline, two processes optimized for different economics.
If you’re evaluating heel counter manufacturers for a multi-category program, ask whether they run both processes in-house. Consolidating your counter supply under one manufacturer who handles both thermoforming and injection molding eliminates a vendor, reduces logistics complexity, and lets you shift SKUs between processes as volumes change.
When Each Process Wins
Thermoforming wins when:
- You’re running fewer than 30,000 pairs per SKU per year
- You need samples or new silhouette counters in under 2 weeks
- Weight is a primary spec (athletic, running)
- Your geometry is moderate — no deep undercuts, no variable-thickness requirements
- You’re using cellulose-based or Surlyn sheet materials that aren’t available in pellet form
Injection molding wins when:
- Annual volumes exceed 50,000 pairs per SKU
- You need variable wall thickness in a single part (stiff spine, flexible wings)
- Stiffness consistency is critical (medical, orthopedic, heavy-duty work)
- Your geometry includes undercuts, snap-fit features, or integrated attachment points
- You’re using engineering-grade polymers (glass-filled nylon, high-modulus TPU)
Neither process wins for every application. Anyone telling you otherwise is selling something.
One thing worth flagging: some brands are now exploring hybrid approaches — thermoforming the basic shell and then overmolding injection-molded reinforcement ribs onto it. This is still niche (adds tooling and a secondary operation), but for premium performance footwear that needs both light weight and targeted stiffness zones, it’s a real option. We’ve seen specs come through for this type of construction from trail running brands pushing into the 250–300g shoe weight range.
Sourcing Considerations for US Brands
If you’re a US-based brand sourcing heel counters from Asia, here’s what actually matters beyond the process comparison.
Duty classification. Heel counters classified under HTS 6406.90 (parts of footwear) currently face different duty rates depending on material composition and country of origin. Counters containing over 50% textile fiber by weight may classify differently than all-plastic counters. Get your customs broker involved early — the classification difference can be 3–8 percentage points on duty.
Lead times by process and region. Thermoformed counter tooling from a Southeast Asian supplier: 7–12 days. Injection mold tooling: 25–45 days for production-grade steel. If you’re developing a new silhouette and your shoe insole manufacturer is already running samples in Vietnam or Indonesia, having your counter supplier in the same region cuts coordination time significantly.
At FX Footwear, our regional manufacturing across China, Northern Vietnam, Southern Vietnam, and Indonesia means your counters, insoles, midsoles, and uppers can originate from facilities positioned alongside major Tier 1 assembly plants. That cuts transit time between component production and final shoe assembly from weeks to days.
Testing and compliance. For the US market, heel counter materials need to meet CPSC requirements. California Prop 65 applies if your product ships to California retailers (and it will — California is roughly 12% of US retail). We coordinate ASTM testing through our in-house lab for initial material validation, with full third-party verification through Intertek and BETA for production-grade certification.
FAQ
What’s cheaper: molded or thermoformed counters?
At volumes below 30,000 pairs per SKU, thermoforming is cheaper due to lower tooling costs ($1,500–$6,000 vs. $8,000–$25,000). Above 50,000 pairs, injection molding’s lower per-piece cost ($0.08–$0.15) makes it more economical.
Which process produces lighter heel counters?
Thermoforming typically produces counters 15–30% lighter than injection-molded equivalents from the same polymer, because sheet stretching naturally creates thinner walls across the part.
Can one supplier handle both processes?
Yes, some manufacturers run injection molding and thermoforming lines in the same facility. This lets brands assign each SKU to the optimal process without managing separate vendors.
Are injection-molded counters stronger?
They offer a wider stiffness range and better batch-to-batch consistency (±2% flexural modulus vs. ±5–8% for thermoforming). For medical or heavy-duty work footwear, injection molding is the safer spec.
How long does counter tooling take?
Thermoform tooling (aluminum): 5–12 days. Injection mold tooling (production steel): 25–45 days. Prototype injection molds in aluminum can cut that to 10–15 days at reduced tool life.
