Nitrogen Foaming Technology: How It Changes Shoe Making

Nitrogen foaming technology replaces chemical blowing agents with pressurized N₂ gas to create lightweight, high-rebound foam for insoles and midsoles. It’s a physical foaming process — no VOCs, no residual chemicals, just gas and heat doing the work. If you’ve been tracking supercritical foaming but assumed CO₂ was the only game in town, this piece fills in the other half of that picture.

The footwear industry’s shift toward supercritical fluid foaming (SCF) has mostly been told through the CO₂ lens. Fair enough — CO₂-based SCF is more widely adopted right now. But nitrogen foaming is gaining ground fast, especially in midsole applications where cell structure uniformity and higher processing temperatures matter. The two gases produce meaningfully different foam architectures, and those differences show up in how a shoe performs on your foot.

Let’s get into exactly how N₂ foaming works, where it differs from CO₂, and why it matters if you’re sourcing insoles or midsoles for your brand.

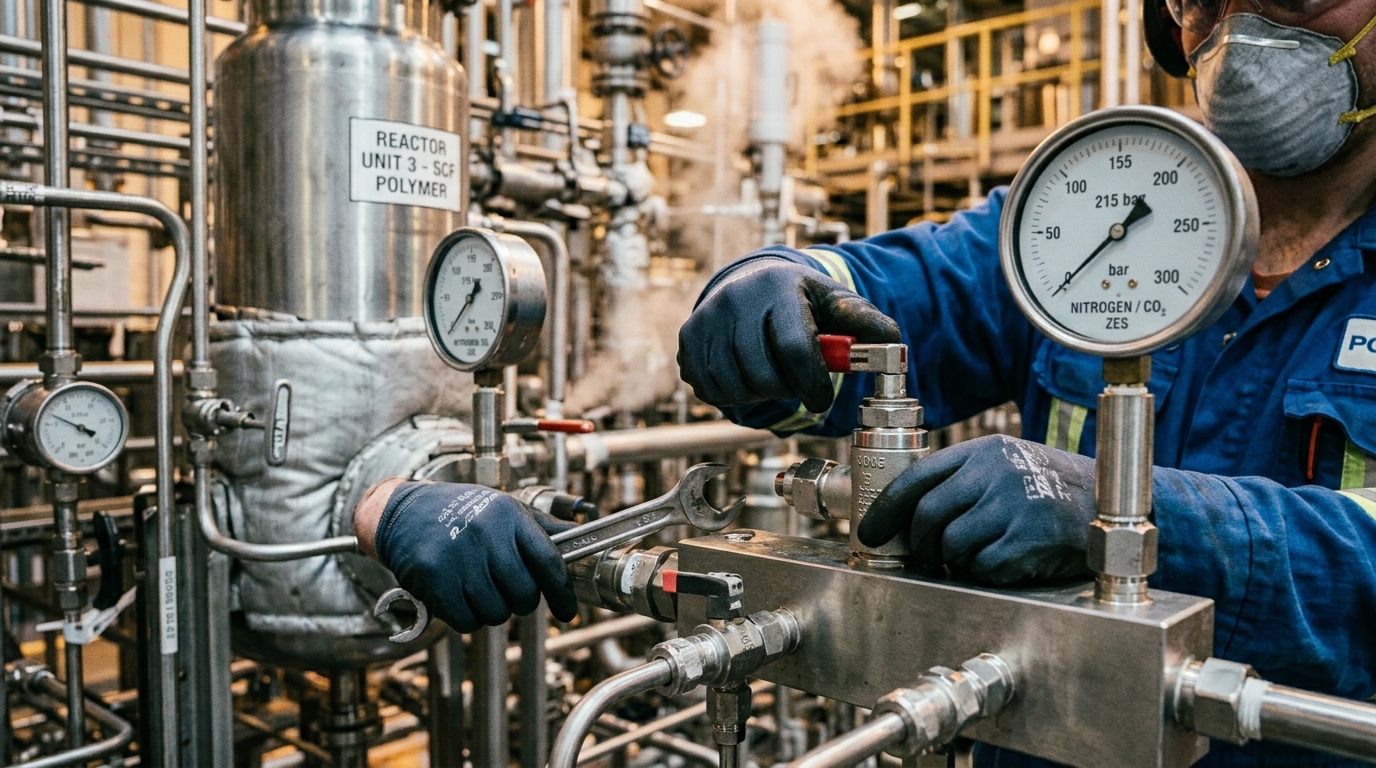

How N₂ Supercritical Foaming Works

Supercritical fluid foaming using nitrogen follows the same core principle as CO₂-based SCF: you dissolve a gas into a polymer melt under extreme pressure, then rapidly drop that pressure so the gas expands into millions of tiny bubbles (cells) within the material.

Here’s where nitrogen gets specific.

N₂ reaches its supercritical state at −146.9°C and 3.4 MPa — which sounds cold, but in practice you’re working with the gas well above that temperature inside a heated barrel or autoclave. The critical pressure for nitrogen (3.4 MPa / ~493 psi) is lower than CO₂’s 7.38 MPa, but N₂ has significantly lower solubility in most polymers. That lower solubility is actually the key variable shaping everything downstream.

Because nitrogen doesn’t dissolve as readily into polymer melts, the nucleation density tends to be higher — you get more cell nucleation sites but each cell stays smaller. The result? Finer, more uniform microcellular structures compared to what CO₂ typically produces under the same conditions. A 2019 study published in Polymer Engineering & Science (Xu et al.) confirmed that N₂-foamed TPU samples exhibited cell densities roughly 10× higher than CO₂-foamed equivalents at comparable expansion ratios.

The tradeoff: because less gas dissolves per unit of polymer, you often need higher saturation pressures or longer saturation times to achieve the same expansion ratio you’d get with CO₂. Equipment costs run higher. Processing windows are tighter.

But for midsole and insole manufacturers chasing a specific foam feel — dense, springy, with consistent cell size across the cross-section — nitrogen can deliver something CO₂ struggles to match.

N₂ vs. CO₂ Cell Structure

The practical difference between nitrogen-foamed and CO₂-foamed components comes down to what’s happening at the microscopic level. And that micro-level difference translates directly into what a runner or a warehouse worker feels underfoot.

CO₂’s higher solubility means it saturates polymers faster and at lower pressures, which is why it dominates high-volume insole production. You can process EVA with CO₂ SCF relatively economically, hitting densities as low as 0.07 g/cm³ with rebound rates above 80%.

Nitrogen shines when you need that tighter cell distribution. Think about it from a materials science angle: smaller, more uniform cells mean more consistent compression behavior across the foam cross-section. There are fewer large voids acting as weak points. That translates to more predictable energy return stroke after stroke — exactly what performance midsole designers want.

One thing worth noting (and this is something we see brands overlook): the “best” foaming gas depends entirely on the base resin. EVA foams beautifully with CO₂. TPU and PEBA? Nitrogen often produces better cell architecture in those resins because of how gas-polymer interaction differs at the molecular level. If you’re working with our supercritical CO₂ foam insole line, you’re already getting the benefits of physical foaming — the question is whether your next midsole project might benefit from the N₂ path instead.

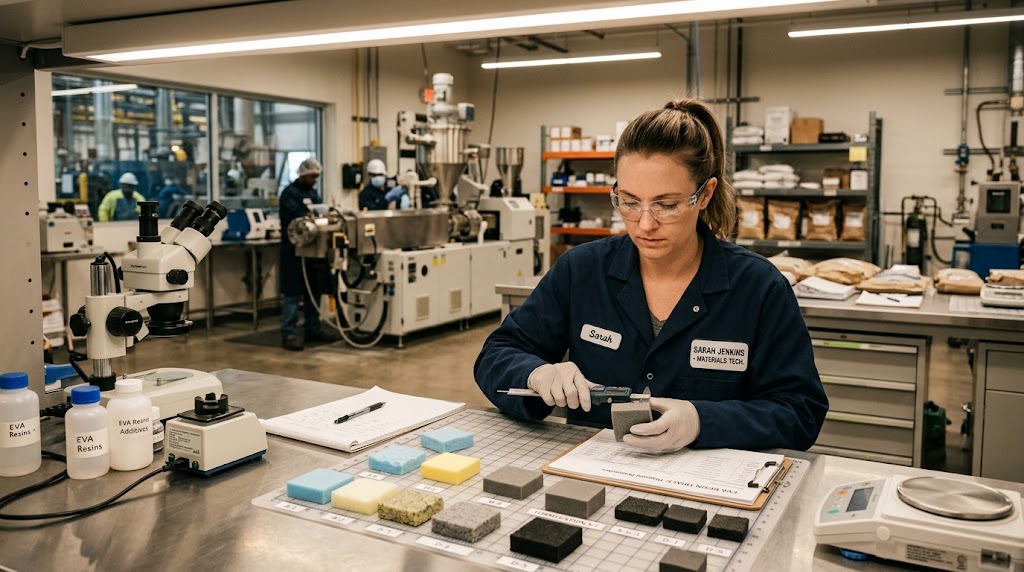

Base Resin Compatibility

Not every polymer responds the same way to nitrogen foaming. This is where sourcing decisions get interesting for footwear brands.

EVA remains the workhorse. It’s the most cost-effective SCF base material — mature processing, excellent flowability, good shape retention over time. CO₂ foaming dominates EVA processing because EVA’s amorphous regions absorb CO₂ readily. Can you foam EVA with nitrogen? Yes. But the economics usually don’t justify it unless you’re targeting a very specific cell structure that CO₂ can’t deliver in EVA. For most athletic and casual insole applications, CO₂-foamed EVA wins on cost per unit.

TPU is where nitrogen starts earning its keep. TPU’s crystalline domains resist CO₂ absorption, which can lead to uneven cell distribution in CO₂-based processes. Nitrogen, with its different diffusion behavior in semi-crystalline polymers, often produces more homogeneous foams in TPU. After SCF processing, TPU forms initially hard pellets that expand into soft, lightweight foam — and the uniformity of that expansion matters enormously for midsole consistency batch to batch. TPU-based SCF midsoles typically get blended with EVA to balance weight and rebound, and nitrogen foaming of TPU/EVA blends is an active area of development at multiple Asian suppliers.

PEBA — the premium tier. This is the fastest-growing SCF base material, positioned at the top of the performance (and cost) ladder. When Shincell (申赛新材料, based in Suzhou) supplied PEBA foam for the Adidas ADIZERO ADIOS PRO EVO series, the foaming process required precise cell control that nitrogen-based SCF excels at. PEBA’s exceptional resilience and low weight make it the default choice for elite racing footwear, but it’s typically blended with EVA or TPU before foaming to manage the cost-performance ratio.

TPEE rounds out the four main SCF-compatible resins. Good elasticity combined with heat and chemical resistance — priced between TPU and PEBA. TPEE shows up mostly in outsole and performance sole applications where thermal stress is a factor.

The cost hierarchy stays consistent regardless of foaming gas: EVA < TPU < TPEE < PEBA. And the rebound hierarchy in SCF applications: PEBA > TPEE > TPU-blend > EVA. We don’t produce TPEE or PEBA in-house — those are sourced resins that we process through our SCF equipment.

If you’ve been exploring how nitrogen foamed EVA insoles differ from conventional EVA, the resin compatibility question is the natural next step: it’s not just about the gas, it’s about which gas pairs best with which polymer for your target application.

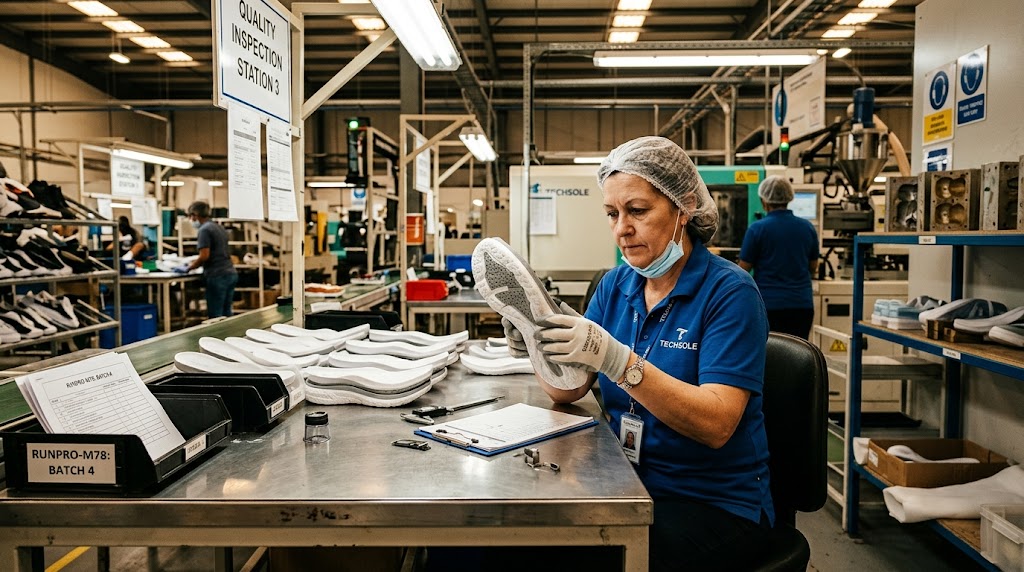

Midsole and Insole Applications

Where does nitrogen foaming actually show up in production footwear? Let’s be specific.

Performance midsoles are the primary application. When brands like Adidas, HOKA, or On push for sub-200g midsole weights with high energy return, they’re working with TPU or PEBA foams where nitrogen-based SCF processing offers advantages in cell uniformity. The elite marathon racing shoe category basically demands this level of foam engineering. HOKA’s maximal cushioning philosophy, for instance, requires thick midsole geometries where cell consistency across 30-40mm of foam height becomes a real engineering challenge. Nitrogen’s tighter cell distribution helps maintain consistent compression response from top to bottom of those stacks.

Insoles remain more CO₂-dominant, and for good reason. Most insole applications don’t require the same cell-level precision that a performance midsole demands. EVA compression-molded insoles, injection-molded insoles, and die-cut formats all work well with CO₂ SCF. That said, we’re seeing growing interest in nitrogen-foamed insoles for medical and therapeutic applications where ISO 13485:2016-compliant quality management (which we hold) intersects with the need for extremely consistent compression properties across every single unit. Orthotic insoles that need to deliver ±2% hardness variation batch to batch — that’s a use case where nitrogen’s tighter process control can justify the higher cost.

What nitrogen foaming doesn’t solve. If your primary concern is cost efficiency on high-volume casual or workwear insoles, nitrogen foaming adds expense without proportional benefit. A standard EVA insole at 20–45 Asker C hardness (±3 tolerance), produced via CO₂ SCF or traditional compression molding, will serve that market perfectly well. The technology matters most at the performance edge — the top 10-15% of the market where grams and rebound percentages translate directly into sell-through.

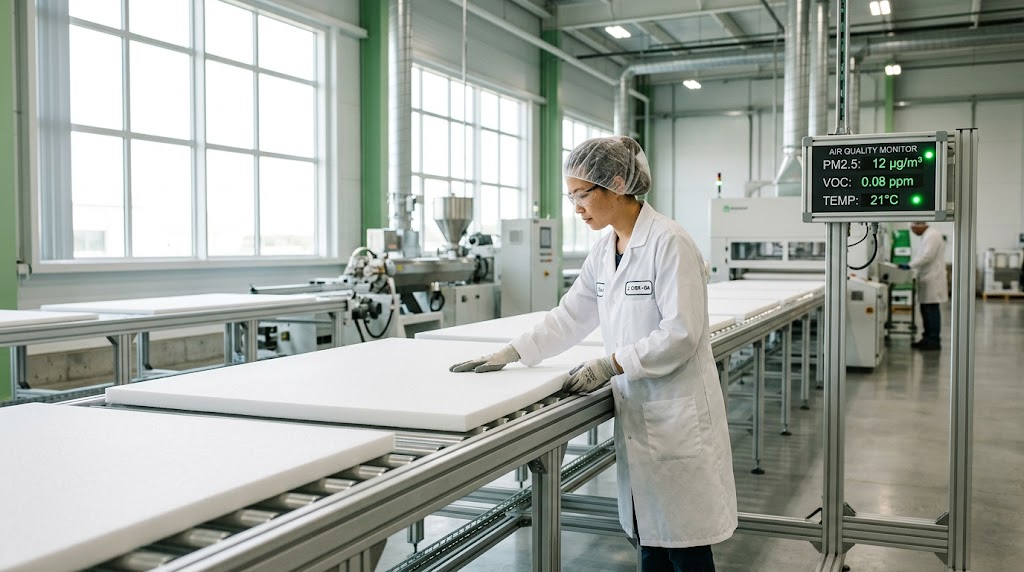

Environmental and Process Benefits

Both CO₂ and N₂ supercritical foaming share the same core environmental advantage: no traditional chemical blowing agents. That means no residual azodicarbonamide, no ADC decomposition byproducts, no VOC emissions from the foaming step. The blowing agent is just gas — CO₂ or N₂ — that vents harmlessly after cell formation.

Nitrogen has a slight edge in one specific area: it’s 78% of the air we breathe, so there’s zero global warming potential associated with the foaming gas itself. CO₂, while still far better than chemical blowing agents, does carry a GWP of 1 (it’s literally the reference gas for global warming potential calculations). In practice, the CO₂ used in SCF processing is typically captured industrial byproduct, so the net climate impact is minimal either way. But for brands building sustainability narratives — especially those reporting under the Higg Index framework — the distinction can matter in lifecycle assessment documentation.

At FX Footwear, our GRS certification covers the supply chain traceability for recycled and sustainable input materials, while our Higg Index participation provides the framework for measuring and reporting on manufacturing process impacts. When you combine a clean physical foaming process (whether CO₂ or N₂) with sustainable base materials like sugarcane-based EVA or recycled EVA compounds, the environmental story gets genuinely strong — not just marketing-strong.

The practical manufacturing benefit of N₂ worth mentioning: nitrogen generators are increasingly common in Asian factories. Unlike CO₂, which requires bulk liquid delivery and storage tanks, nitrogen can be generated on-site from compressed air using PSA (pressure swing adsorption) systems. For a shoe insole manufacturer with facilities across China, Vietnam, and Indonesia (as we operate), on-site N₂ generation means one fewer logistics dependency.

Choosing Between N₂ and CO₂

This isn’t an either/or decision for most footwear brands. It’s a project-by-project evaluation.

Choose CO₂ SCF when you’re working with EVA-dominant constructions, targeting mid-market price points, producing insoles at high volume, or need the broadest possible processing window. CO₂ is more forgiving, cheaper to implement, and delivers excellent results for 80%+ of footwear foam applications.

Choose N₂ SCF when your project involves TPU or PEBA base resins, demands extremely consistent cell structure across thick foam geometries, targets the performance or elite athletic segment, or requires the tightest possible density and rebound tolerances. Expect to pay more — both for equipment amortization and per-unit processing cost.

The real power move? Working with a supplier that operates both. That’s where our end-to-end production control — from material foaming to final assembly — gives brands flexibility. You don’t have to commit to one foaming gas across your entire line. Your casual collection can run CO₂-foamed EVA insoles while your performance running line gets N₂-foamed TPU midsoles, all from the same manufacturing partner with in-house lab validation at every step.

FAQ

What is nitrogen foaming technology?

Nitrogen foaming technology is a physical foaming process that uses pressurized N₂ gas as the blowing agent instead of chemical foaming agents. It creates microcellular foam structures in polymers like EVA, TPU, and PEBA for footwear midsoles and insoles.

How does N₂ foam differ from CO₂ foam?

N₂ produces smaller, more densely packed cells due to lower gas solubility in polymers. CO₂ foaming offers broader processing windows and lower equipment costs. N₂ excels with TPU and PEBA resins; CO₂ dominates EVA processing.

Is nitrogen foaming more expensive?

Yes. Higher saturation pressures, tighter processing windows, and costlier equipment make N₂ SCF more expensive per unit than CO₂ SCF. The premium is justified mainly for performance midsoles where cell uniformity directly affects product performance.

Which materials work best with nitrogen foaming?

TPU and PEBA show the strongest advantages with nitrogen foaming due to their semi-crystalline structures. EVA can be N₂-foamed but typically performs equally well with cheaper CO₂ processing. TPEE is also compatible.

Is nitrogen foaming environmentally friendly?

Yes. N₂ is inert, non-toxic, and constitutes 78% of Earth’s atmosphere. No VOCs or chemical residues remain in the finished foam. It can also be generated on-site, reducing logistics-related emissions.

Ready to explore whether nitrogen or CO₂ supercritical foaming fits your next footwear project? FX Footwear (Fuxiang Group) operates SCF foaming across facilities in China, Vietnam, and Indonesia, with in-house lab testing to validate foam density, rebound, and cell structure before you commit to bulk production. Reach out to our team with your target specs — resin type, density range, application — and we’ll return a detailed technical proposal within 48 hours for standard constructions.
