If you’ve been researching advanced insole materials lately, you’ve probably come across the term supercritical CO2 foam insole — and wondered what all the buzz is really about. This isn’t just another material upgrade. Supercritical CO2 foaming represents a genuine shift in how foam is created at a molecular level, producing insoles that behave, perform, and age differently than anything conventional manufacturing can deliver. In this technical deep-dive, we’ll break down exactly what happens inside the process, why it matters for footwear performance, and what it means for brands sourcing insole components at scale.

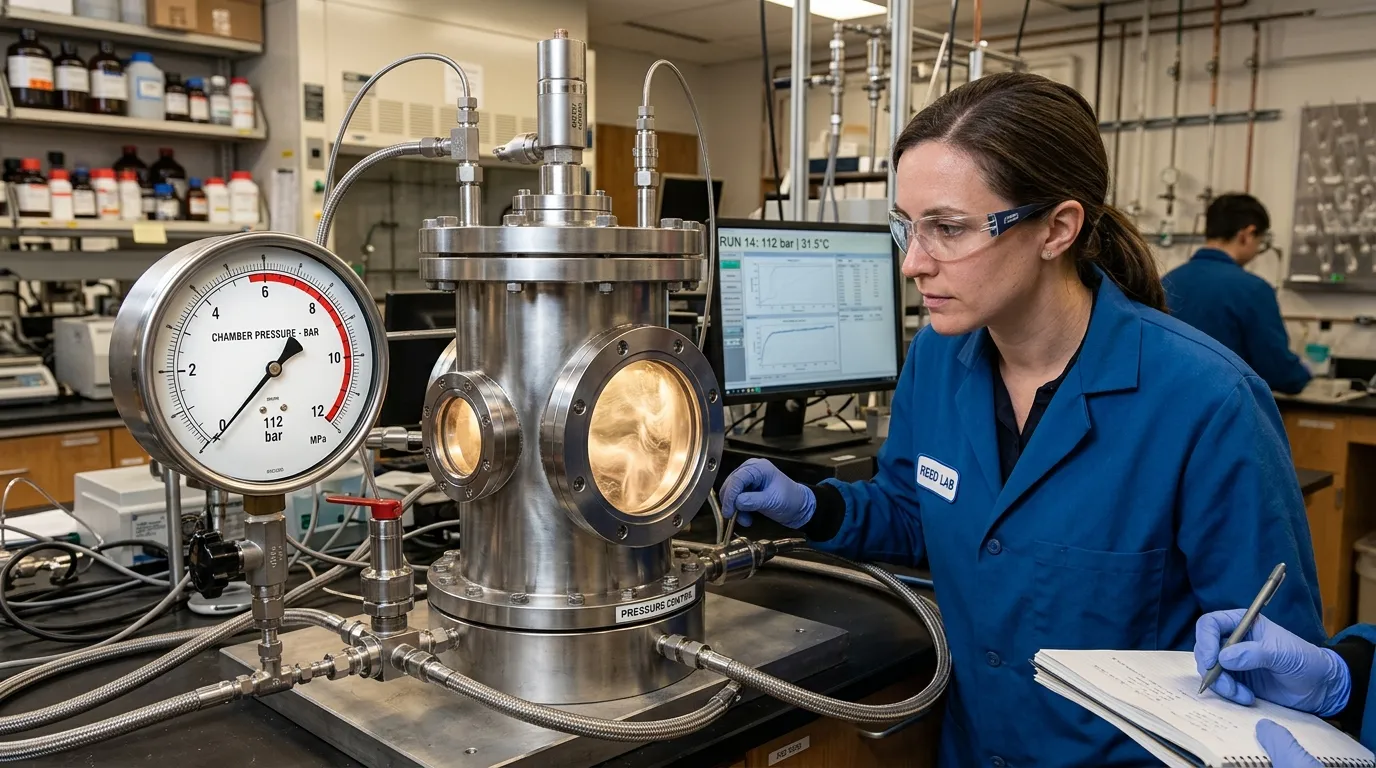

The Science Behind CO2 Foaming
To understand why supercritical CO2 foaming is different, you first need to understand what “supercritical” actually means. CO2 becomes supercritical when it’s held above a specific temperature (31.1°C) and pressure (73.8 bar) simultaneously. At that point, it no longer behaves as a gas or a liquid — it exists in a hybrid state with the density of a liquid and the diffusivity of a gas. This gives it an extraordinary ability to penetrate polymer matrices uniformly and deeply.
When this supercritical CO2 is forced into a polymer like EVA or TPU under pressure, it saturates the material at the molecular level. The moment pressure is released, the CO2 nucleates rapidly and uniformly throughout the entire material — not just on the surface. The result is an extremely fine, closed-cell foam structure with a cell size distribution that conventional chemical blowing agents simply cannot match.
This isn’t an incremental improvement. The physics of nucleation under supercritical conditions fundamentally changes what’s possible. Chemical foaming agents create cells through a relatively slow thermal decomposition reaction, which leads to variable cell sizes and irregular distribution. CO2 foaming bypasses all of that, creating conditions where millions of nucleation events happen almost simultaneously — producing a foam architecture that is measurably superior at a microscopic level.
CO2 Foaming vs. Chemical Blowing Agents
The most instructive comparison for footwear engineers and sourcing teams is between supercritical CO2 foaming and traditional chemical blowing agent (CBA) methods. In conventional EVA foaming — explored in detail in our piece on supercritical foam vs traditional EVA materials — chemical additives decompose under heat to release gas, and that gas creates the foam cells. The problem is that this process is inherently difficult to control with precision.
Chemical blowing agents introduce several variables: the decomposition temperature window, the rate of gas release, and the interaction between the blowing agent residue and the polymer matrix. These variables result in foam with a wider cell size distribution, more surface irregularities, and a higher likelihood of density inconsistencies across a batch. For insole manufacturers, this translates to part-to-part variability that has to be managed through tighter process controls and higher reject rates.
With supercritical CO2 foaming, the “blowing agent” is CO2 — a gas that leaves zero chemical residue once it escapes. There are no decomposition byproducts, no residual compounds to affect the material’s long-term properties, and no secondary reactions to account for. The process is cleaner, more controllable, and produces a more consistent output. For a wholesale shoe insole manufacturer working at high volumes, that level of process consistency directly impacts yield rates and downstream quality assurance.

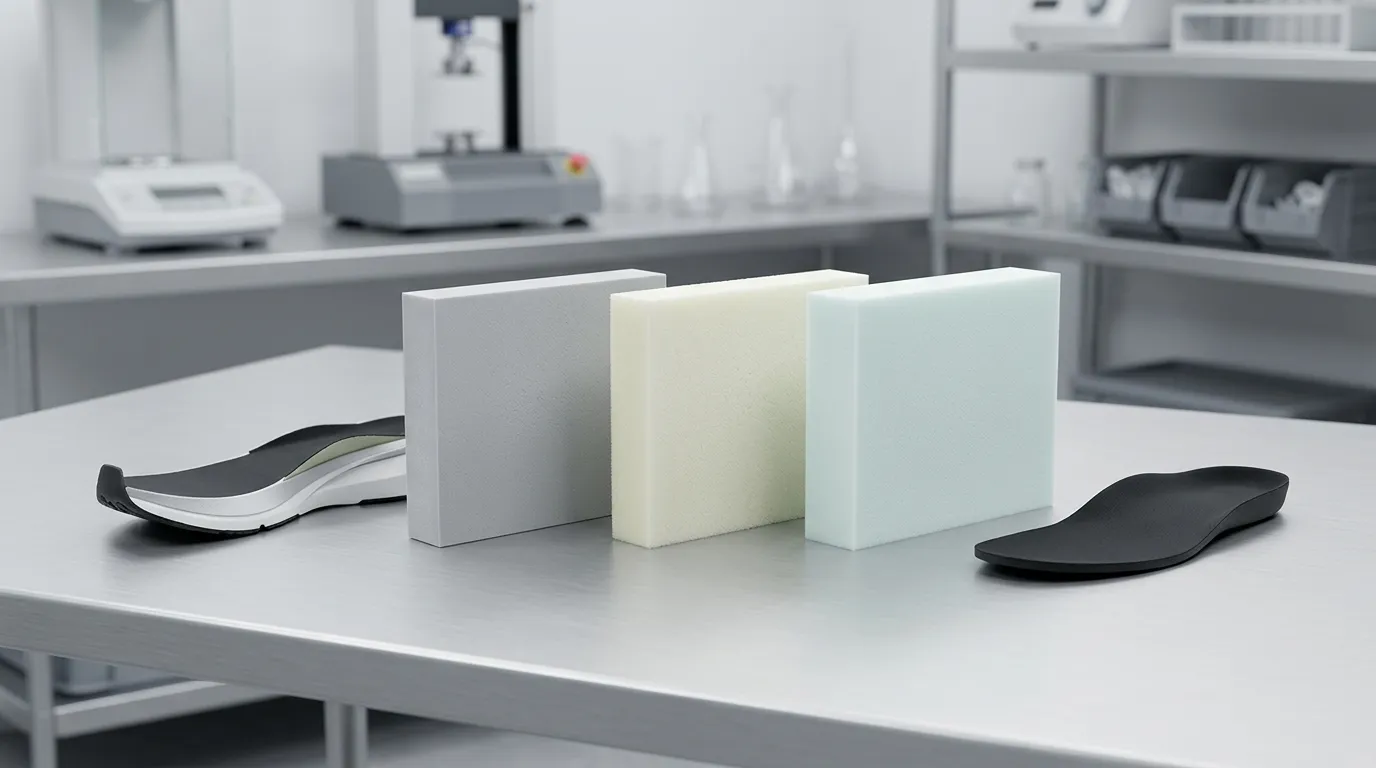

Physical Properties of CO2 Foam
The microscopic cell structure created by supercritical CO2 foaming has cascading effects on the physical properties that matter most for insoles: energy return, compression set resistance, and weight. Let’s take each in turn.
Energy return is a function of how efficiently a foam stores and releases deformation energy. Finer, more uniform cells deform more predictably under load and spring back more completely. In practical terms, a supercritical CO2 foam insole can deliver measurably higher energy return percentages compared to a conventionally foamed EVA part of the same density — sometimes by a significant margin depending on the base polymer and processing parameters. This is why the technology has gained rapid traction in performance athletic footwear, where cushioning efficiency is a direct competitive differentiator.
Compression set resistance — the foam’s ability to resist permanent deformation after repeated loading — also improves significantly. The uniform cell wall thickness that comes from consistent nucleation means that cells share loads more evenly. No one region of the foam is structurally weaker than another, so the material ages more gracefully under the cyclic stress of daily wear. Conventional foams often show localized compression set in high-load zones (heel, metatarsal head) long before the rest of the insole shows wear.
Weight reduction is perhaps the most commercially compelling advantage. The fine cell structure allows formulators to achieve target cushioning properties at a lower overall foam density. That means lighter insoles without sacrificing performance — a trade-off that was previously very difficult to navigate with traditional foaming methods. For brands where gram-counts matter to the end consumer, this is a meaningful technical advantage.
Environmental Profile of CO2 Foaming
One of the reasons supercritical CO2 foaming has attracted so much interest beyond pure performance is its environmental profile. Traditional chemical blowing agents often include compounds with environmental or health concerns — azodicarbonamide (ADA) being one of the most scrutinized. While regulatory positions on these substances vary by market, the trend in North American and European footwear sourcing is clearly toward eliminating them from supply chains.
CO2, by contrast, is a naturally occurring compound. When used in supercritical foaming, the CO2 is typically sourced as a byproduct from industrial processes — meaning its use in foam manufacturing doesn’t represent net new CO2 generation. It’s captured, utilized in the foaming process, and released harmlessly when the pressure drops. No hazardous decomposition products, no residual compounds in the finished part, and no downstream chemical waste from the foaming stage itself.
This matters for brands with sustainability commitments and for retailers who require supply chain transparency. Choosing a supercritical CO2 foam insole allows brands to make credible, specific claims about their manufacturing inputs — not just vague assertions about “eco-friendly” materials. It’s an auditable, explainable process improvement that can be documented through supplier disclosures and third-party certifications. For sourcing teams navigating increasingly rigorous retailer compliance requirements, that specificity has real commercial value.
It’s also worth noting that the elimination of chemical blowing agents can simplify compliance with regulations like REACH in Europe and various state-level chemical safety frameworks in the US. Fewer chemical inputs in the formulation means fewer substances to track, test, and report.
Manufacturing Challenges & Scale Considerations
Supercritical CO2 foaming sounds like an obvious upgrade — and in many ways it is — but it’s worth being clear-eyed about the manufacturing realities. The process requires specialized equipment capable of achieving and maintaining the precise temperature and pressure conditions that define the supercritical state. That’s a meaningful capital investment compared to conventional EVA compression molding or injection foaming lines.
Cycle times can also differ from conventional processes. Depending on the polymer system and part geometry, saturation times and decompression rates need to be carefully calibrated. Getting those parameters right for a new part requires engineering development time — it’s not a drop-in replacement for an existing tooling and process setup. For brands accustomed to fast-turn sampling on conventional materials, this is a consideration worth factoring into development timelines.
That said, at established production scale, the process yields significant efficiencies. Scrap rates are lower due to better material consistency. Post-processing requirements are reduced because the surface quality and dimensional accuracy of supercritically foamed parts are generally superior. And because the process is more deterministic — fewer variables, more controlled nucleation — process engineers can optimize it more systematically than they can with CBA-based methods.
Working with an experienced custom shoe insole manufacturer who has already invested in this technology and built process expertise is the most practical path for most brands. The learning curve is real, but it doesn’t need to be your learning curve — partnering with a manufacturer who has already navigated the equipment investment, process optimization, and quality system development compresses your time-to-market significantly.
FAQ
FAQ: What polymers work with supercritical CO2 foaming?
The process is compatible with several polymers commonly used in footwear, including EVA (ethylene-vinyl acetate), TPU (thermoplastic polyurethane), and certain TPE formulations. TPU is particularly well-suited because its mechanical properties combine well with the fine cell structure that CO2 foaming produces, yielding exceptional energy return and durability. EVA remains popular due to its cost profile and widespread industry familiarity. The right polymer choice depends on the target performance spec, cost constraints, and the end-use application — a performance running insole has different requirements than a casual comfort insert.
FAQ: How does CO2 foaming affect insole durability?
Because supercritical CO2 foaming produces a more uniform cell structure with consistent cell wall thickness throughout the part, the foam resists localized compression set more effectively than conventionally foamed alternatives. In long-term wear testing, this translates to insoles that maintain their cushioning and support properties further into their use cycle. The absence of chemical blowing agent residues also means there are fewer potential degradation pathways within the material matrix over time. For end consumers, this means a product that performs closer to day-one spec for a longer period.
FAQ: Is CO2 foaming more expensive?
There is typically a cost premium associated with supercritical CO2 foaming, primarily driven by higher equipment costs and the engineering investment required to optimize processing parameters for each part. However, the total cost picture is more nuanced. Lower scrap rates, reduced post-processing, and the ability to achieve target performance at lower densities (meaning less raw material per part) all work in the opposite direction. For performance-positioned products where the material properties command a price premium at retail, the economics often make strong sense. Brands should evaluate cost on a total-value basis rather than a direct material-cost comparison.
FAQ: Can CO2-foamed insoles have custom stiffness?
Yes — one of the practical advantages of supercritical CO2 foaming is that stiffness and cushioning profiles can be tuned through adjustments to processing parameters (pressure, temperature, decompression rate) and formulation variables (polymer grade, additive package). This makes it possible to produce insoles targeting different segments — from ultra-soft comfort applications to firmer, more responsive performance builds — within the same general process framework. Zonal differentiation, where different areas of the insole have different properties, is also achievable through mold design and process variation, giving designers meaningful latitude to engineer functional performance.
FAQ: What certifications should CO2 insole suppliers have?
Key certifications to look for include ISO 9001 for quality management systems, OEKO-TEX Standard 100 or REACH compliance documentation confirming the absence of restricted substances, and any relevant environmental management certifications such as ISO 14001. For the US market specifically, look for suppliers who can provide material composition transparency and traceability documentation — this supports any claims you need to make to retailers or end consumers. If sustainability positioning is part of your brand strategy, ask potential suppliers for specific documentation on their CO2 sourcing (recycled/captured industrial CO2 versus virgin production) to support the environmental narrative accurately.
