Integrated Heel Support for Footwear Development

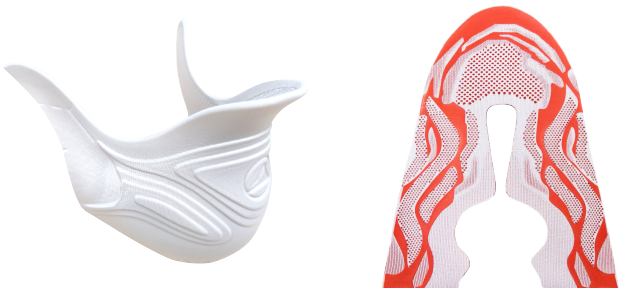

Custom 5D Integrated Molded Heel Counter
FX develops each 5D integrated molded heel counter around the shoe last, intended support profile and upper construction. Its formed geometry combines close rearfoot containment, layered comfort and a surface that can become part of the shoe’s visual identity. Hands-free entry support is evaluated within the complete footwear sample.
Product Value
A Heel Structure Developed Around the Complete Shoe
The counter brings fit, support, contact feel and appearance into one development conversation. Final performance depends on the approved component and the way it works with the collar, lining and rear-quarter construction.
Close Heel and Ankle Containment
The molded profile wraps the heel and ankle as a connected support zone. This creates a defined basis for reviewing rearfoot hold, motion-control intent and rear geometry during sampling.
Layered Comfort with Structure
Strategically developed layers place cushioning and support within the same heel construction. Layer location and contact feel remain project-specific rather than tied to one universal recipe.
Hands-Free Entry Support
A controlled balance of rigidity and flexibility can support step-in use without the rear structure folding. The complete shoe determines the final entry experience, so finished-footwear validation remains essential.
A Visible Design Surface
Shape, molded texture and color can connect the counter with the upper’s design language. The component may remain understated or become a recognizable rear-quarter detail.
Development Framework
5D Heel Counter Specification Framework
A useful specification begins with the last, footwear category, upper build and intended heel feel. These inputs give development, sourcing and production teams one reference for comparing samples.
| Development area | Project inputs | What the decision shapes |
|---|---|---|
| Heel and ankle geometry | Last data, size range, collar height and target coverage | Rearfoot wrap, fit relationship and visual proportion |
| Support balance | Target rigidity, flex response and entry behavior | Heel hold, step-in feel and shape recovery |
| Layer construction | Cushioning locations, contact surfaces and support zones | Comfort distribution and local structure |
| Upper interface | Lining, rear-quarter pattern, collar and joining method | Assembly path, edge transitions and finished appearance |
| Surface direction | Shape, texture, color and visible design intent | Product identity and collection consistency |
| Validation plan | Destination market and buyer test methods | Sample acceptance and production control points |
Application Fit
Footwear Applications for Integrated Heel Support
The same product concept can take a different geometry and layer balance across performance, outdoor, work and everyday footwear.
Running & Performance
A close rearfoot wrap supports heel-hold objectives while keeping the counter connected to a technical upper package.
Trail & Outdoor
Outdoor programs may use broader ankle coverage and a stable rear structure without adding unnecessary bulk.
Work Footwear
A supportive heel structure can be developed with reinforced uppers and durable underfoot components. Complete-shoe safety approval remains separate.
Everyday & Step-In
Walking, casual and comfort-led programs can balance rear structure with the flex needed for an easier entry experience.
OEM & ODM Development
Custom 5D Heel Counter Development
Each OEM or ODM program links geometry, layers, surface design and neighboring components to the intended footwear use. Options are confirmed against the selected construction and approval plan.
- Last-aligned heel geometry
- Size range review
- Layer and support zoning
- Contact-surface selection
- Molded texture and color
- Collar and lining interface
- Edge and joining details
- Buyer-defined validation plan
Quality Process
From Heel Concept to Approved Production Reference
The process keeps the component brief connected to complete-shoe fit and entry behavior. FX laboratory and testing support follows the agreed product and buyer requirements.
Program Definition
Last geometry, size range, upper construction and the intended balance of containment and entry establish the working brief.
Construction Development
Molded geometry, layer arrangement, contact surfaces and upper integration are reviewed as one component system.
Sample & Footwear Review
The component sample supports geometry and surface checks; the complete shoe provides the meaningful fit, hold and step-in review.
Production Alignment
The approved sample, specification, agreed test methods and visual limits become the reference for manufacturing control.
Connected Footwear Development
Why Footwear Teams Develop with FX
One-Stop Component Context
FX works across upper components, insoles and midsoles. Product teams can review how the featured component relates to the surrounding shoe instead of treating it as an isolated part.
Regional Manufacturing Coverage
Fuxiang Group runs eight factories across China, Vietnam and Indonesia. Production scope and location remain part of the individual project review.
Project-Specific Validation
In-house laboratory support follows the approved material, construction and buyer test plan. Third-party coordination is available when external reporting forms part of the program.
Buyer Questions
5D Integrated Molded Heel Counter FAQ
What is a 5D integrated molded heel counter?
It is a formed, layered heel component designed to wrap the rearfoot and ankle area as a connected structure. FX positions the construction around heel containment, comfort zoning, hands-free entry support and customizable surface design.
What does 5D mean for this heel counter?
5D is the product name for FX’s multi-dimensional molded heel and ankle construction. It is not an international test grade or a universal dimensional standard. The approved last, geometry and material specification define the actual component.
Can the shape, texture and color be customized?
Yes. Documented development options include custom shape, molded surface texture and color direction. Feasible choices depend on the construction, tooling and visual acceptance standard.
Can the component support a hands-free shoe design?
The construction is designed to support hands-free entry through a controlled balance of rigidity and flexibility. Final performance depends on the last, collar, upper materials and joining method, so it requires finished-footwear validation.
Which footwear categories suit this construction?
Potential applications include running, outdoor, work and everyday step-in footwear. The layer build and support profile vary because heel hold, wearer contact and entry behavior differ across these categories.
How is a heel-counter sample evaluated?
Component review covers geometry, surface finish, layer integrity and upper integration. The complete-shoe review then considers fit, heel containment, contact feel and entry behavior under the buyer’s agreed validation plan.
A Defined Starting Point for Heel Development
Last data, upper construction, intended use and target heel feel provide the context for geometry, layer and surface development. Commercial terms follow the reviewed component scope.
